CAT5e SF/UTP LAN Cable
  • CAT5e SF/UTP LAN Cable

CAT5e SF/UTP LAN Cable

Specification

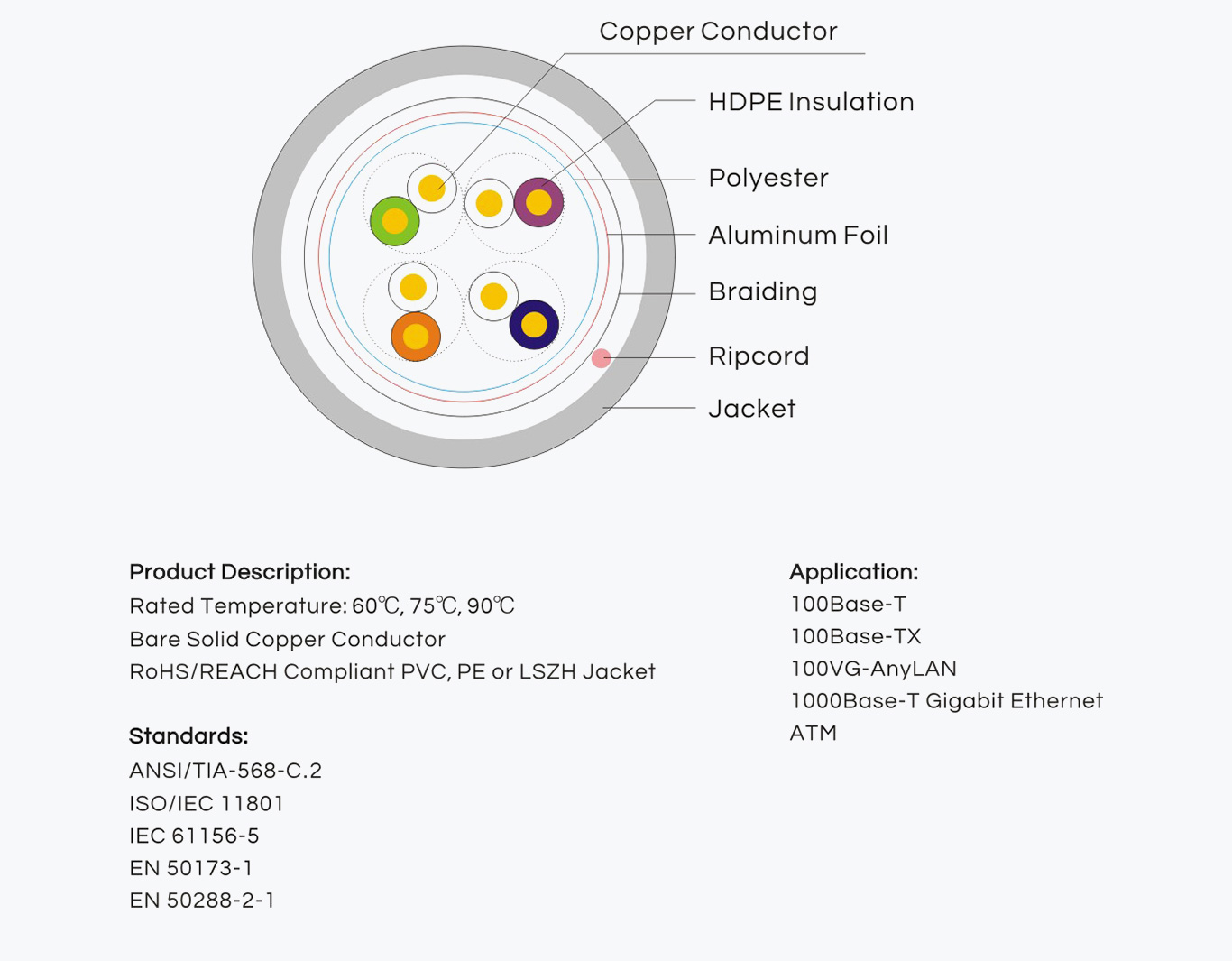

Cable Construction (SFTP CAT5e)

Model

Construction

Conductor

Insulation

No.of Pairs

Shield

O.D.

Jacket Type

Remark

SF5V/SF5E/SF5ZH

SFTP

24AWG

1.0mm

 4

AL Foil + Braiding

6.8mm

PVC/PE/LSZH

100MHz

Electrical Characteristics

Frequency

MHz

Impedance

Ohm

Return Loss
dB

Attenuation

dB/100m

NEXT

dB/100m

ELFEXT

dB/100m

PS NEXT dB/100m

PS ELFEXT dB/100m

Velocity of Propagation

1

100±15

20.0

2.0

65.3

63.8

62.3

60.8

65%

4

23.0

4.1

56.3

51.7

53.3

48.7

8

24.5

5.8

51.8

45.7

48.8

42.7

10

25.0

6.5

50.3

43.8

47.3

40.8

16

25.0

8.2

47.3

39.7

44.2

36.7

20

25.0

9.3

45.8

37.7

42.8

34.7

25

24.3

10.4

44.3

35.8

41.3

32.8

31.25

23.6

11.6

42.9

33.9

39.9

30.9

62.5

21.5

17.0

38.4

27.8

35.4

24.8

100

20.1

22.0

35.3

23.8

32.3

20.8

155

100±18

18.8

28.1

32.4

20.2

29.4

17.2

200

18.0

32.4

30.8

18.0

27.8

15.0

310

100±22

16.7

41.8

27.9

14.2

24.9

11.2

350

16.3

44.9

27.1

13.1

24.1

10.1

Certificates & Honor

Our products have UL, ETL, JIS, CE, CPR, RoHS and REACH certification
